Sunday, February 21, 2021

Building the Dewey Drone from "Silent Running" (1972) - Part V: Painting and Assembly


Previous posts in this series:

 - Building the Dewey Drone from "Silent Running" (1972) - Part I: Getting Started

 - Building the Dewey Drone from "Silent Running" (1972) - Part II: Main Body and Sides

 - Building the Dewey Drone from "Silent Running" (1972) - Part III: Adding Details

 - Building the Dewey Drone from "Silent Running" (1972) - Part IV: Legs and Feet and Toes


Selecting the Paint and Colors

For this prop, I decided to try the Valspar interior paints from Lowe's. They worked rather well on a recent smaller project, and I wanted to give them a try here. And it turned out it was a good choice. With a foam brush, these can be very evenly distributed and the paint dries rather fast. So, if you work on a few pieces, when you are done with the first layer of the last pieces, you can continue with the second layer on the first piece. They sell them in half-pint samples for $4 a piece.
To decide on the colors, I took some screen captures from the DVD. It turns out, however, that the strong changes in the lighting produce a good range of colors in the movie. From comparing different Valspar/Sherwin Williams paints, I decided to go with the "Enchanted Sea".


Dewey's legs and lower body appear brownish in the screen captures. In contrast to this, many Dewey replicas have a stronger red - which looks great. So, I decided to pick a color somewhere in between, and went with the "Jazzy Red". I was about to pick some dark black for Dewey's darker parts, but then changed my mind and used the "Muskeg Grey".


And, after seeing the final results, I have to say that I'm really happy about these choices. The "Jazzy Red" requires a few more layers, and maybe it would have been better to start with a white primer. But still, I love how these colors look on my Dewey.

Additional Materials

For the tubing at Dewey's legs, I used irrigation garden hose with 1/4" outer diameter and 0.17" inner diameter (the inner diameter makes a good fitting on the heads on M3 screws). For the wires with the blue and yellow insulation (on Dewey's front side), I bought 20awg stranded copper wires.


Furthermore, I needed M3 wood screws with lengths of 6mm, 10mm, and 14mm (50pc of each are sufficient). For the lower left panel, I also got three switches.

Painting

There is not too much I can say about the painting, just that I really recommend applying many thin layers with the foam brush.
I start with the front and back pieces that feature Dewey's "1" (the red is also the "Jazyy Red").



The top details and the memory cards. The memory card holders were painted with Apple Barrel acrylics paints and sealed with "Liquitex Basics, matte varnish".


For the few silver-colored pieces, I started with a layer of white acrylic paint on which I then added the silver acrylic paint, plus "Liquitex Basics, matte varnish" as a sealer.






Once the paint of the "wire box" is dried, I'm adding the blue and yellow wires. The four blue 3mm LEDs and the red 5mm LED will be added later into the "9"-shaped hole, when I'm dealing with the rest of the electronics.



This is it! The painting is done. I really love how the colors came out (in this image, they seem a little brighter than in real life).


Memory Card Programmer

In "Silent Running", Lowell is reprogramming the drone's memory cards at a few occasions. In the following clip, I compiled all the scenes that feature the memory cards, the programmer, or the storage unit.


I also built this little device which is a combination of the programmer and the storage unit.




Assembly

I'm starting installing the pre-assembled elements to the front frame (the "speaker grille", the lamp in the top right, the "wire-box" below).


Then I add the "hip-joints" (and I wonder why I painted them - they won't be visible), ...


... and the pieces for the legs, ankles, and feet.


Gluing the round plates below the handles into the inside of the body.



And adding the two small black plates to the bottom of Dewey body.


The plate with the three switches is screwed to the inside, so I can remove it later again for wiring the switches.



The covers for the openings on the bottom of the left and right sides, from which the hoses emerge that go to the legs. The hoses (with inner diameter of 0.17") sit nicely on the heads of the 10mm M3 screws.





6mm M3 screws are added all around Dewey's body - later these will be painted blue.


The back side is inserted and the holders are screwed into the body (with 14mm M3 screws)


To connect the hoses, 10mm M3 screws are screwed into the sides of the legs.


The the legs are glued to the "hip-joints".


Finally, the top details are glued onto the body.




Assembly of the piece that sits in the bottom left of the front frame. The two holes are initially filled with short, silver-painted wooden dowels. Later, I may replace those with electronics components (... once I figured out what those could possibly be - and what they might do).



The hoses are connected.




That's it! Almost ... but it's a good time to take Dewey out and use the unique opportunity to take photos of him in the snow.

Dewey in the Snow






Dewey and Friends

And here is Dewey together with two colleagues, that would have their screen debuts five and 43 years later, respectively.


I love how this came out!
What's still missing at this point is Dewey's arm and the electronics (on the latter, I have not yet decided what I want to implement). Both may take a little while. At this point, I'm just happy to have a new companion.

Tuesday, February 2, 2021

Building the Dewey Drone from "Silent Running" (1972) - Part IV: Legs and Feet and Toes

 previous posts in this series:

 - Building the Dewey Drone from "Silent Running" (1972) - Part I: Getting Started

 - Building the Dewey Drone from "Silent Running" (1972) - Part II: Main Body and Sides

 - Building the Dewey Drone from "Silent Running" (1972) - Part III: Adding Details

 - Building the Dewey Drone from "Silent Running" (1972) - Part V: Painting and Assembly


So far, I built all of Dewey's body, including all the details. Now, I proceed with the legs, feet, and toes.


The Feet

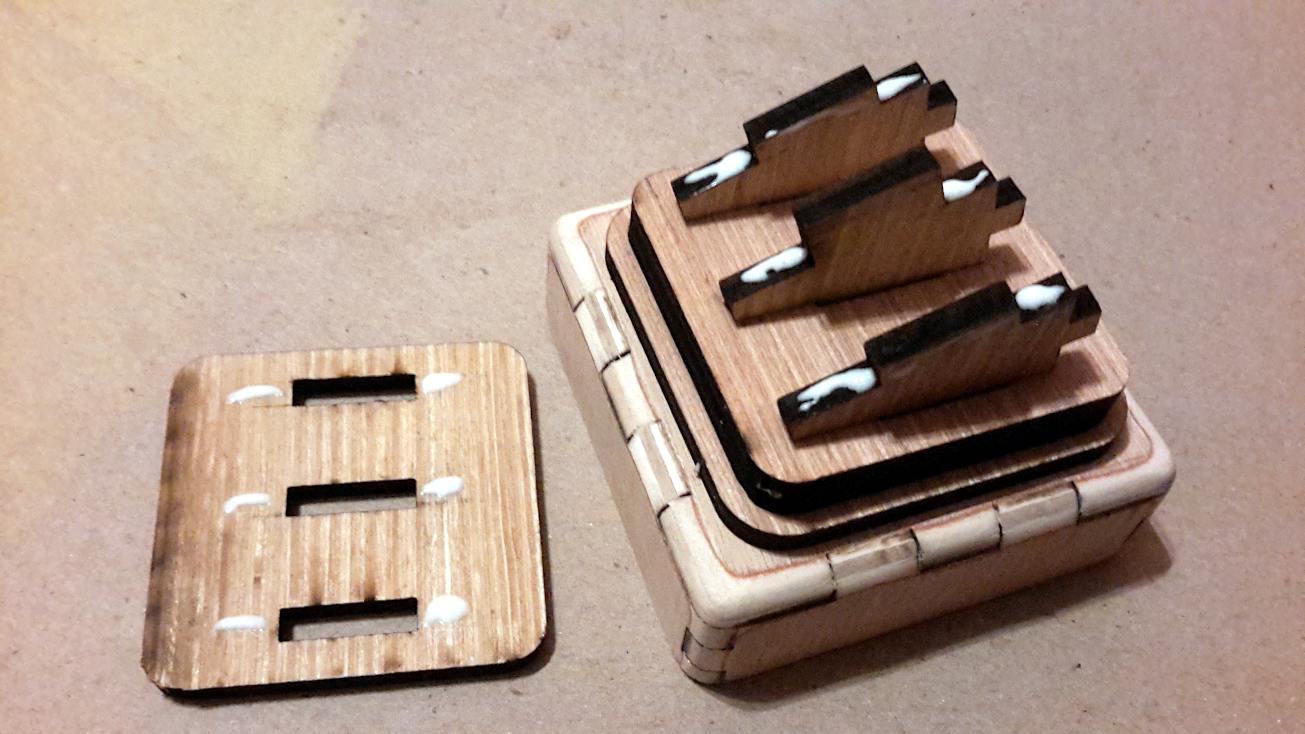

The feet are simply two little flat boxes, with slits on the top to connect the joints coming from the leg.




The Legs

Here are all the pieces for one leg.


The edges of the long pieces are sanded to 22.5 degrees.





The Joints

I wanted Dewey's legs to come out at an angle, so I designed these angled joints from which one sits between the leg and the foot,



and the other one between the leg and the body (the piece on the right in the following image).


The Toes

I did not see how I could possibly build the toes with a laser cutter, so these are made by hand starting with a table saw and  a miter saw. Each foot gets three smaller toes, plus one larger toe for the front side. The sides are cut at an angle of 10 degrees and the top side is sanded to achieve the slightly curved shape.




The lines are then cut with a hand saw,


and the toes are glued to the feet (after the edges of the feet were sanded to get the nice curved shapes).


And here is the complete legs & feet & toes unit. These will be glued later, after painting.


Now, all wooden pieces are there.


Sanding

The next step is sanding. While this is a lot of work, there aren't any photos. So, let me just provide this one of the tools that I used.


All the Wooden Pieces

So, here is the overview of all of Dewey's wooden pieces.



The next step is: Painting and Assembly
