Markus Wobisch: May 2024

This Meyer Görlitz Helioplan 40mm f/4.5 lens was manufactured around 1949/50. It was the widest lens for SLR cameras, before retrofocus designs were developed.

One thing that is special about many of these old lenses is the larger number of aperture blades. This one has twelve, resulting in beautiful circles for out-of-focus shapes.

This piece has the Exakta mount.

For a 75 years old lens, this one is, cosmetically, in pretty good shape. But, as expected, its aperture is oily and the focus is extremely stiff. But these are easy to fix.

Maybe, at a later date, I will add more text. But the pictures and their annotations make it pretty clear, how to disassemble this lens. As usual: When disassembling the helicoids, pay good attention when they separate, so you can insert them exactly like they were before. Otherwise, you may loose infinity focus.

Removing the rear glass.

And removing the front glass.

This gives access to the aperture blades which can be cleaned in-place from both sides, using isopropyl alcohol or lighter fluid.

With the focus set to infinity, the focus ring is removed.

These two screws guide the helicoids (helicoid keys),

While removing the two screws, don't rotate the front piece. Then, carefully remove the front piece, and: remember its initial position, count how many turns it took to become free, and (most important!) remember exactly its position when it becomes free. That's where it has to be inserted later.

75 year old grease!
Then, the second helicoid is removed (I did not take a picture of that step).

These are all the pieces - cleaned!!

Now: Putting everything back together, starting with the helicoids (after placing a small amount of helicoid grease on them).

The first helicoid is back....

... and the second one too. Now the helicoid keys are inserted.

Last step: Cleaning the glass elements before inserting them.

It's as good as new!

A few test shots show that it has a very soft rendering. I am not sure if this is caused by a small amount of fog (it's hard to tell looking through the lens since the glass elements are so small) or if it's typical for this lens. In any case, it makes this lens very special.

More of my lens repair tutorials can be found here.

The Nikkor 85mm f/2.0 is known as a sharp and fast portrait tele lens. It was built from 1977-1995, first as AI and later as AI-S version. Here, I am repairing the AI-S version. The glass and aperture are still in excellent shape, but the focus feels awful. This is most likely due to dried and dirty grease in the focusing helicoid.

Tools

This is what is needed for the job.

JIS (Japanese Industrial Standard) screwdrivers since the screws in these Japanese lenses are not Phillips screws, but JIS screw heads which are slightly different. Using a Phillips screwdriver can easily ruin the heads. So do yourself a favor a buy a set of Vessel screwdrivers. I got a set for $13 and the quality is much better than any other (cheap) screwdriver set I ever used.
High percentage Iospropyl Alcohol (I got 91%) and cotton swabs (for cleaning all surfaces and the old grease in the helicoids)
Zippo Lighter Fluid
Helicoid grease

Warning

The disassembly of manual focus Nikkor lenses is conceptually extremely easy. The only problem that one encounters are screws that are glued and/or cemented and therefore very hard to unscrew. One has to be very careful not to strip the heads of the screws.
While working on this lens, I encountered this problem three times. In two cases, I was able to solve the problem by soaking the screws in alcohol and adding heat (with the tip of a soldering iron). In the third case, I failed and I ruined the screw. But, as described below, I was able to do a work-around and finish repairing the lens.

Disassembly

Since the glass and aperture are in great shape, I do not have to do any work on the front side - just enter the lens from the rear side.

I start by removing the three bayonet screws (one was very hard to get loose - only after soaking the head in alcohol and applying heat it came out).

I remove the back plate, and notice the connections.

The aperture ring can be removed.

I remember how the spring for the aperture clicks is positioned before I unscrew the two screws.

For the following, it is important to set the lens to a well-defined focus distance - I set it to infinity focus.

And this how it looks from the back side. Yours may look different, so better take a photo to remember the position.

I unscrew both helicoid keys (remember not to change the focusing!).

I remove the helicoid keys, and I remember which one was in which slot (although they are the same, it is usually better for mechanical systems, to keep the pieces in their original places).

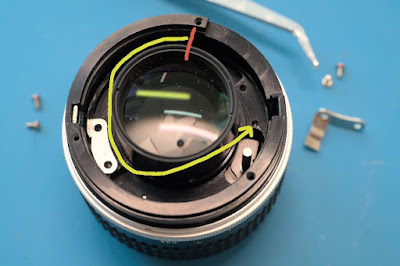

The red arrows indicate the alignment before taking out the inner piece. Now, I carefully rotate the inner piece (with the optical system) clockwise (when seen from the back) and note when the inner helicoid becomes free. In my case, this happens when the screw hole on the right (marked by the red arrow) makes about 3/4 turn (as indicated by the yellow arrow).

This photo was taken at exactly the position where the inner helicoid became free. This is how it has to be reinserted later.

When the helicoid comes out, you see immediately the reason for the poor focusing: Old dried and dirty grease. This needs to be cleaned on both sides.

Clean!

To access the second (fine) helicoid (which holds the focus ring), I try to unscrew the three screws in the silver ring. This worked well for two of them ...

... but it failed for the third one. I totally ruined that screw head. So, either I get a screw removal tool, or I try a work-around.

As work-around, I try to clean this helicoid in place as follows: I rotate the focus ring to minimum distance which opens up the slit (indicated by the yellow arrow) by a small amount. Then I insert some Zippo lighter fluid and turn the while thing, so that the lighter fluid gets everywhere. I do this a few times, let it sit overnight and repeat it again the next day. After the second or third time the focus ring is rotating without noticeable friction. Then I carefully insert a little grease into the slit. After turning the focus ring many times forth and back, it feels like the grease is somehow distributed in there.

Now, I add small amounts of grease (less than a droplet) at three places in the inner part with a toothpick.

I insert the inner piece exactly where it came out, and check if it is able to rotate to its final position (as indicated in the picture). Actually, I did this step a few times before I added the grease, just to be sure that I remembered everything correctly.
